State Diagrams

A state diagram is the states something can be in and the events that move it between them. It starts with state and its title.

state Media player
direction: right
* -> Stopped
Stopped -> Playing: play
Playing -> Paused: pause
Paused -> Playing: play
Playing -> Stopped: stop
Paused -> Stopped: stop
Playing
  * -> Buffering
  Buffering -> Streaming: ready
  Streaming -> Buffering: stall

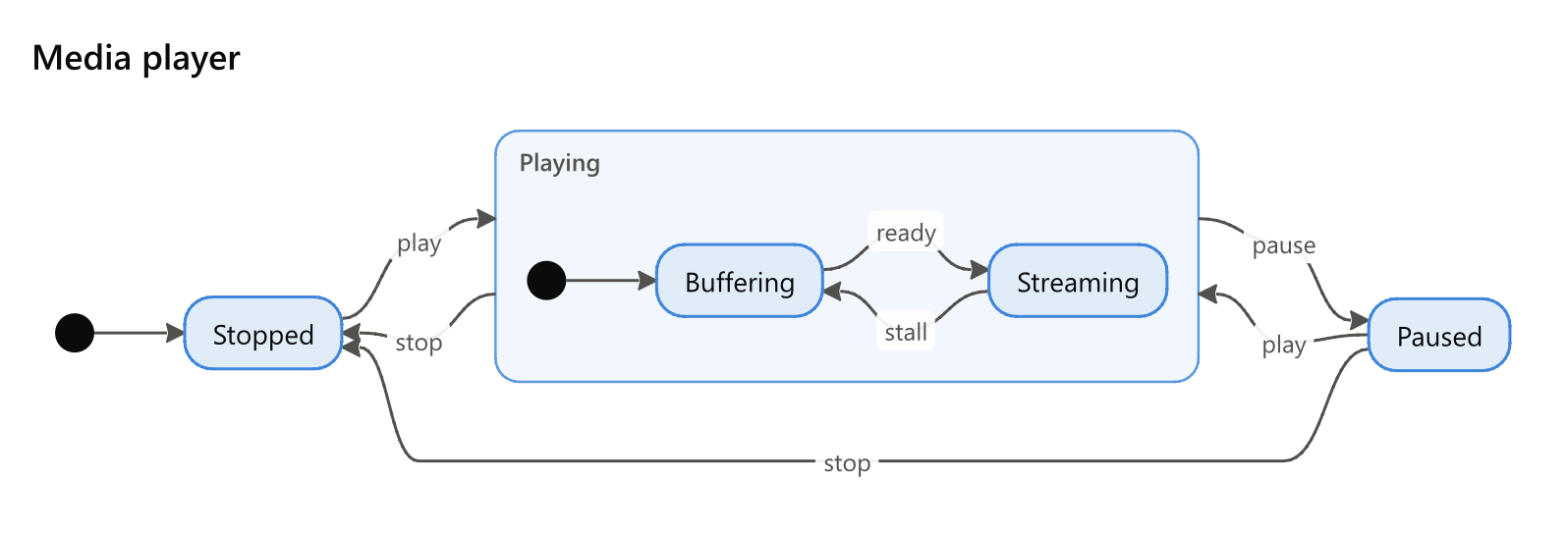

The text above: Stopped, Playing and Paused joined by their events, Playing a frame holding Buffering and Streaming

Settings

Setting	Also	Value
`direction`	`flow`, `orientation`, `layout`, `rankdir`	which way the transitions run: `down` (the default), `right`, `up` or `left`

States and transitions

States are made as a flowchart's steps are - where they are first named - and drawn rounded. state Name, as other tools write it, names one too. An arrow between two states is a transition, and the words after its colon are the event that makes it: Playing -> Paused: pause.

Where it starts and stops

* before an arrow is where the machine starts, and after one where it stops: * -> Idle, Done -> *. Mermaid's [*] reads the same. A * in any other kind of diagram is said.

Composite states

A state with lines indented under it is a composite state: a frame holding a state machine of its own, with its own start and its own stop. Arrows to and from its name reach its frame. Playing: Playing music gives a composite a label.

Choices, forks and joins

Attribute	Draws the state as
`[choice]` (also `decision`)	a diamond, where the machine goes one way or another
`[fork]`	a bar, where it splits into states that run together
`[join]`	a bar, where they meet again

state An order
* -> Placed
Placed -> split
split [fork]
split -> Paid
split -> Packed
Paid -> joined
Packed -> joined
joined [join]
joined -> Shipped
Shipped -> Returned?
Returned? [choice]
Returned? -> Refunded: yes
Returned? -> *: no
Refunded -> *
note Shipped: Tracked from here

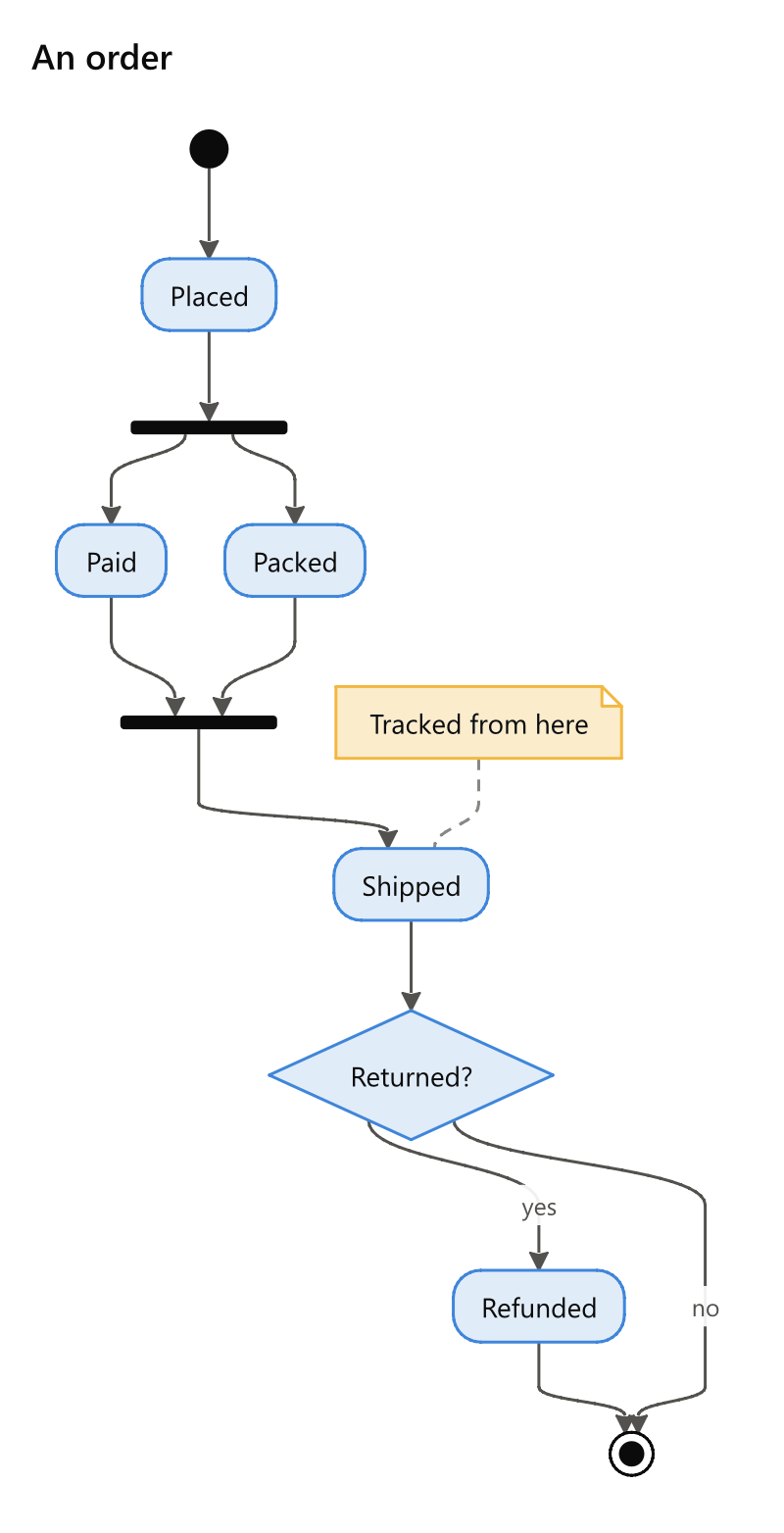

The text above: a fork into Paid and Packed, a join into Shipped, a note, and a choice whose answers both reach the end

Colours and roles in brackets colour a state, as on the language page.

Notes

note State: what to say puts a note beside a state, joined to it by a dashed line.
