Dhole Examples

Divooka Compute comes with fourteen Dhole examples, in the Dhole category of New from examples (Ctrl+Shift+E). Each is a Routine: a Text node under Begin holds the Dhole text and feeds Draw Dhole, which draws it, and Describe Dhole, whose sentence Print Line prints. Run one, select Draw Dhole, and the picture is in Properties; change the text and run again. Each has a note saying what it shows and one thing to try.

The Flowchart example after a run, its picture in the Properties panel

Example	Shows	Prints
Flowchart	steps, arrows with labels, questions, a step's shape and colour in brackets	A flowchart of 8 steps and 9 arrows.
Flowchart with Groups	`direction: right`, groups, short names with long labels, shapes, a dashed arrow and a coloured one	A flowchart of 7 steps and 7 arrows in 2 groups.
Sequence Diagram	actors and participants, calls and replies with their bars, an if and an else, a note	A sequence diagram of 4 participants and 8 messages.
State Diagram	a start, transitions named by their events, a composite state with its own start	A state diagram of 5 states and 9 transitions.
Class Diagram	classes with members, inheritance, aggregation with a label, a stereotype	A class diagram of 4 classes and 3 relationships.
Entity Diagram	entities with keys, relationships drawn with crow's feet from their cardinalities	An entity diagram of 4 entities and 3 relationships.
Mind Map	a centre, branches by indentation, a colour in brackets	A mind map of 15 ideas on 4 branches.
Timeline	times with one or several events, sections	A timeline of 5 times and 6 events.
Gantt Chart	durations, tasks that wait for others, weekends skipped, a marked day, a task's state, a milestone	A Gantt chart of 6 tasks from 2026-11-02 to 2026-11-24.
Four Charts	pie, bar, line and scatter charts in one text	a sentence for each chart
Quadrant Chart	the axes' ends, the quarters' names, points	A quadrant chart of 5 points.
Sankey Diagram	flows with amounts, a unit	A Sankey diagram of 7 nodes and 7 flows carrying 101 GWh.
Write Dhole	a board kept on the node and written in Write Dhole's card	The figure holds 1 chart.
Mistakes	Draw Dhole's Problems output, and a text drawn as far as it can be read	its four problems

The pictures of most of them are on their kinds' pages: Flowcharts, Sequence diagrams, State diagrams, Class diagrams, Entity diagrams, Mind maps, Timelines, Gantt charts, Charts, Quadrant charts, Sankey diagrams and Tables and boards; Mistakes is on Problems.

Flowchart

flowchart Making tea
Thirsty? [start] -> Boil the kettle -> Tea or coffee?
Tea or coffee? -> Steep the tea: tea
Tea or coffee? -> Brew the coffee: coffee
Steep the tea -> Add milk?
Add milk? -> Pour the milk: yes
Add milk? -> Enjoy [end, good]: no
Pour the milk -> Enjoy
Brew the coffee -> Enjoy

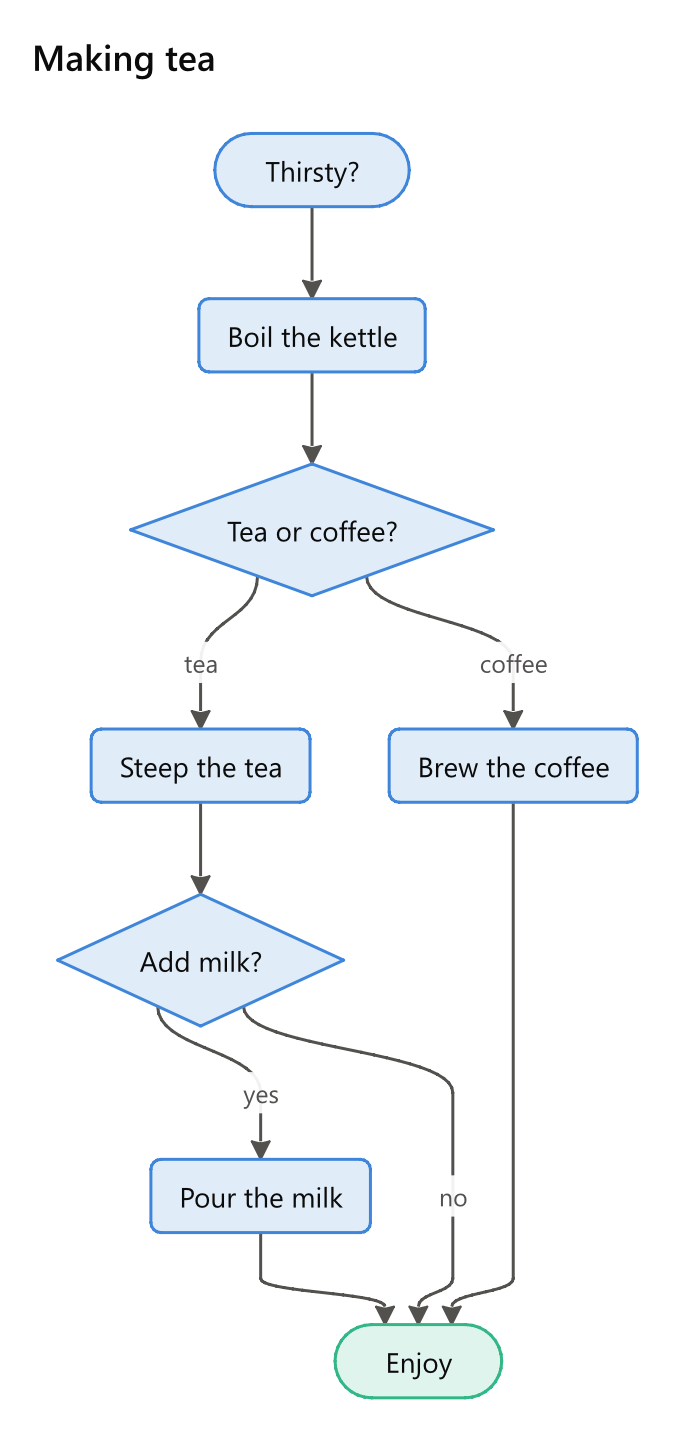

The Flowchart example's picture: making tea, with a question about milk

Try adding Enjoy -> Wash up at the end, as the tutorial does.

Write Dhole

Its Write Dhole node keeps a board on the node itself. Double-click it, move a card to Done, press Done, run, and select Write Dhole to see the board as you left it. A Chart Count node counts the figure's charts for Print Line, since the text is on the node rather than in a Text node.

Mistakes

A flowchart with four mistakes in it, drawn as far as it can be read, its Problems output printed one to a line. Mend the mistakes one at a time in the Text node, and run again until nothing is printed.
